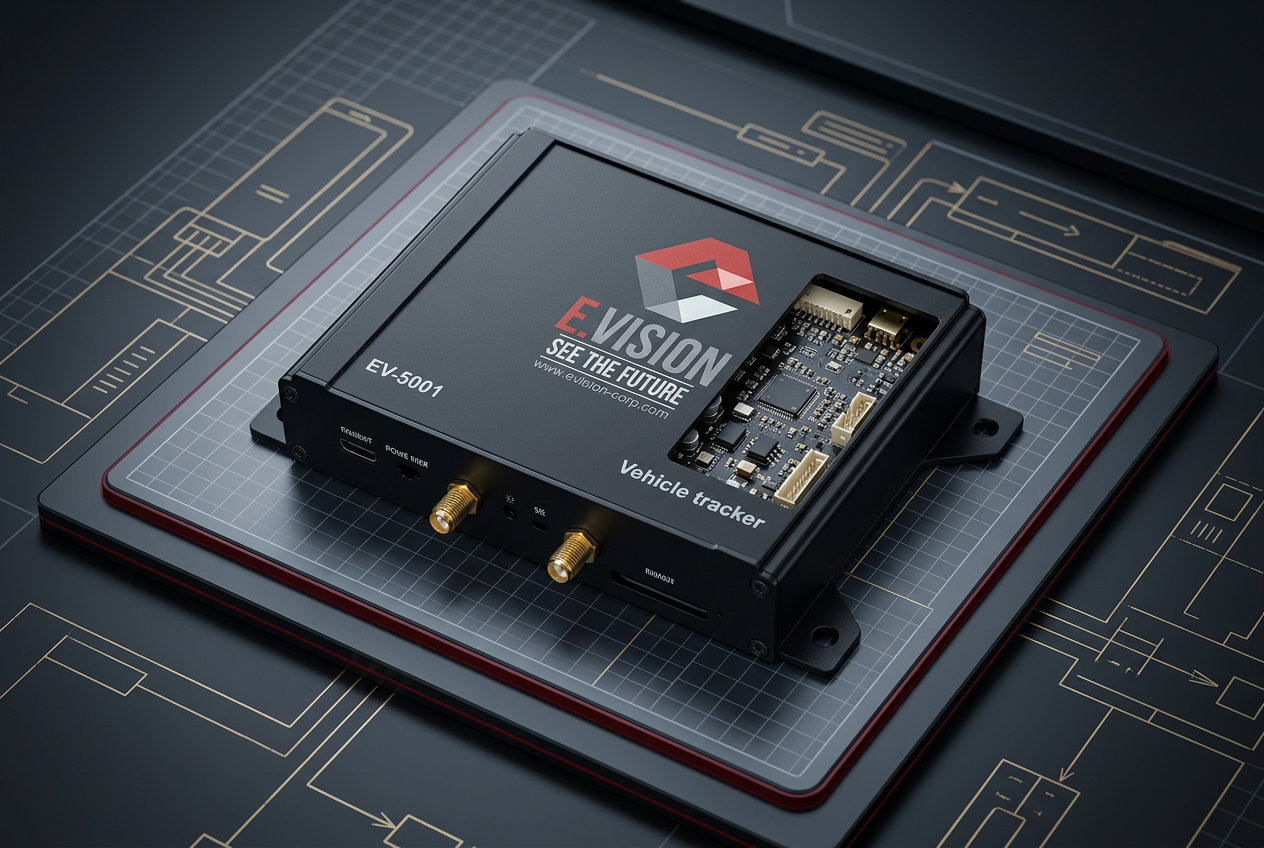

Model EV-5001
Vehicle Tracker
Plug and play GPS tracking for every vehicle type.

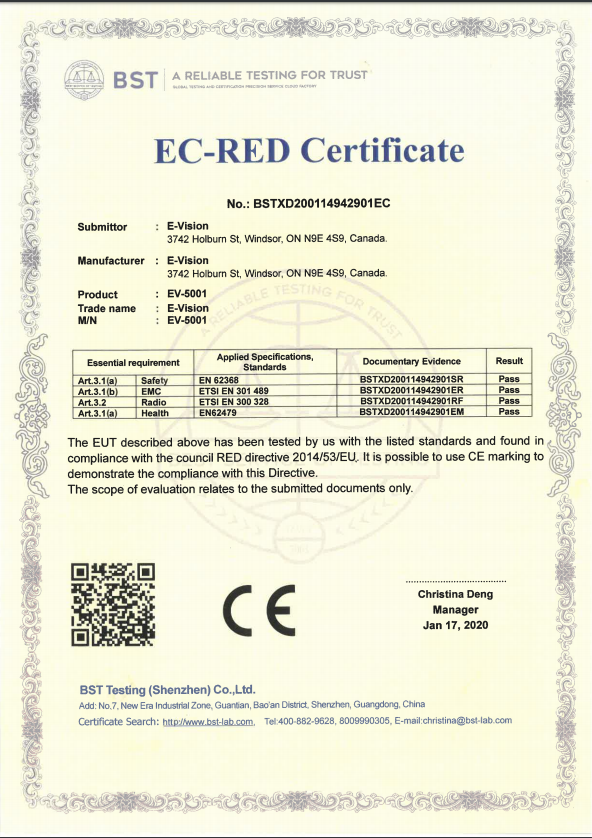

CE certified
Overview
E-Vision EV-5001 is an easy plug and play GPS vehicle tracker with GNSS, 3G and NRF connectivity.
EV-5001 is perfectly suitable for tracking of all vehicle types (cars, trucks, motorcycles, etc.).
EV-5001 is designed for full compatibility with over the air configuration as well as firmware updates. This feature accelerates customer application and integration via a dedicated gateway solution to provide device provisioning, deployment, monitoring and tracking worldwide.
EV-5001 continuously monitors the vehicle status and responds instantaneously to predefined thresholds related to time, date, motion, location, geo-zone, speed and other event combinations.
Features
- 2G/3G
- LTE version (optional)
- Online firmware updates
- Intelligent power management
- Geo-fence management
- GPS and GPRS indicator
- Wireless interface to support OBDII
- Remote vehicle turn-off
- Online / offline location
- SD for history storage
Applications
Basic fleet management
Online vehicle location, status and track history are the main aspects for basic functions of any fleet management solution, including the ability to turn off the vehicle engine in case of theft. NRF integration with OBDII extends the capability of the device to report actual vehicle status, helping fleet service providers enrich report information for more reasonable decision making.
Car rental & leasing
Current vehicle location, status and track history are the main aspects for all rental service providers. Prevent theft with remote car lock management, receive notifications about possible contract violations, monitor driver behaviour and areas where the vehicle is driven — obtain standard tracking information and gain full control of your fleet.
Insurance telematics
Main reasons for insurance payouts are car accidents and thefts. Real time tracking, warnings when a theft attempt or crash is detected, with the possibility to trace accidents — all this to determine the culprit and reduce expenses when an unforeseen event occurs.
Courier delivery service
Quick and professional distribution of goods is the key to profit in the delivery business. Route optimization can reduce your fuel expenses up to 30%; gain full control of your fleet and resources with our solutions.
Taxi
For a taxi company to be competitive and profitable, you must have the most innovative technology on your command. It is not enough to deliver the customer from point to point, you need to ensure safety and traceability. Send pick-up destination, acquire necessary routing and fuel consumption information — manage your fleet with our solution for taxi business.
Technical specifications
General
- Communication modes
- HSPA+, HSDPA, HSUPA, WCDMA, EDGE and GPRS networks and TCP/UDP/SMS
- Location technology
- 16 GPS active channels and 14 GLONASS active channels
- Operating voltage
- 12 & 24-volt vehicle systems
GNSS
- Location technology
- 16 GPS active channels and 14 GLONASS active channels, SBAS (WAAS, EGNOS and MSAS)
- Accuracy
- SBAS <2.5m CEP-50
- Tracking sensitivity
- -161dBm
Interfaces
- Digital inputs
- 5
- Digital outputs
- 5
- Analog inputs
- 4
- Serial interface
- RS232

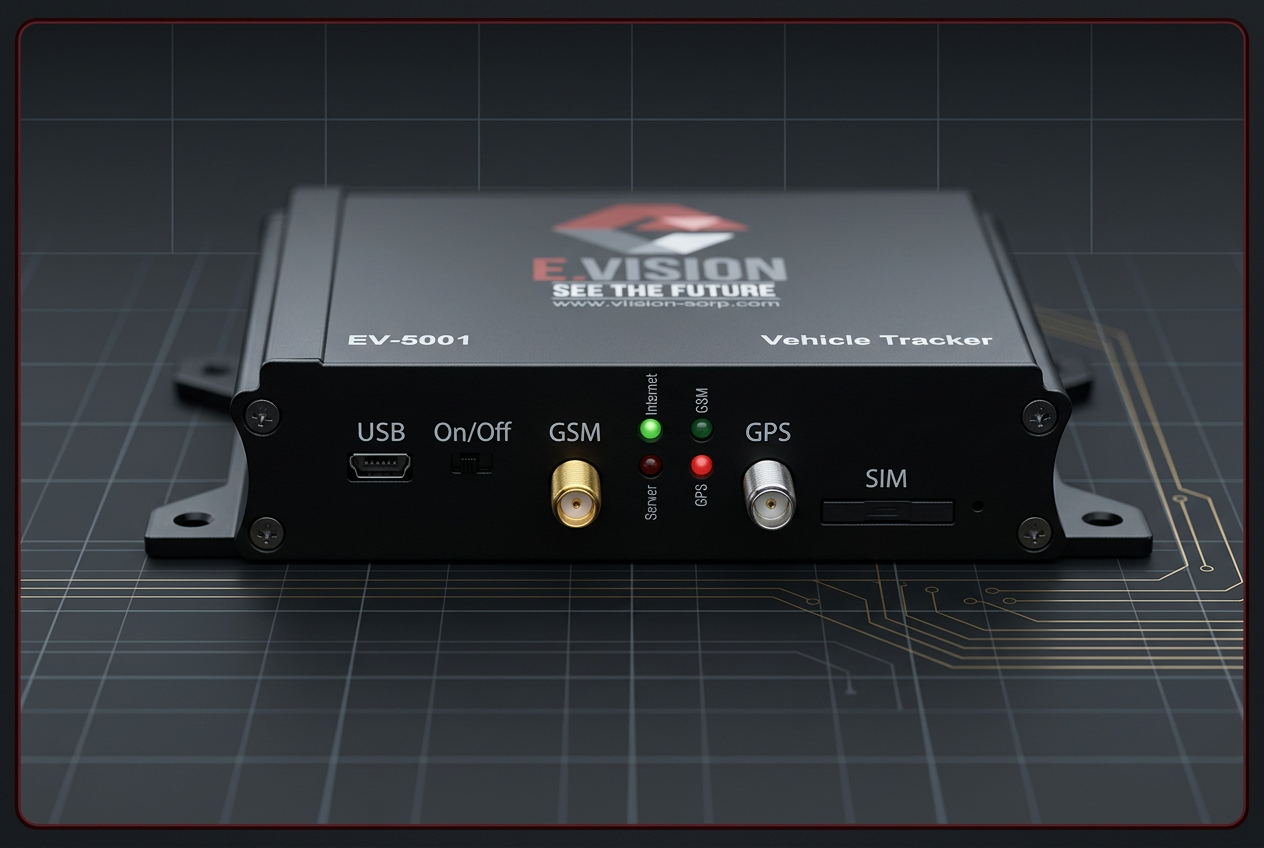

- Indicators
- 4 external 3V outputs
- SD card
- Micro SD-Card saves location history
- USB
- Configuration, firmware update
- GPS antenna
- SMA
- GSM antenna
- SMA
- OBDII wireless link
- SMA
- SIM card
- SIM
- Power switch
- On/Off switch
Cellular
- Modem
- Quectel UC20
- Data support
- SMS, TCP, UDP
- GSM/GPRS
- 850/900/1800/1900MHz
- UMTS WCDMA FDD
- 900/2100MHz
- HSPA data rate
- 14.4Mbps (DL) 5.76Mbps (UL)
- WCDMA data rate
- 384kbps (DL) 384kbps (UL)
- SIM card
- 1.8/3 V
OBDII wireless link
- Operating frequency
- 2.4 - 2.5 GHz ISM band
- Modulation
- GFSK
- Maximum output power
- 0 dBm
- Channel bandwidth
- 2 MHz
- Sensitivity
- -85 dBm
Electrical
- Operating voltage
- 8-30V DC operational for 12V & 24V
- Power consumption
- 18mA 12V (sleep), 90mA 12V (power save), 130mA 12V (active tracking)
- Backup battery
- LI-PO 1300mAh
Environmental
- Operating temperature
- -10 ~ +50°C
- Humidity
- 95%RH @ 50°C non-condensing
- EMC/EMI
- SAE J11113; FCC-Part 15B
- RoHS
- Compliant
Physical
- Dimensions
- 52(L) x 57(W) x 28(H) mm
- Weight
- 80g (without battery)
