Model EV-7001
Vehicle Tracker with RFID Reader
Live vehicle location and loaded asset identification in one rugged device.

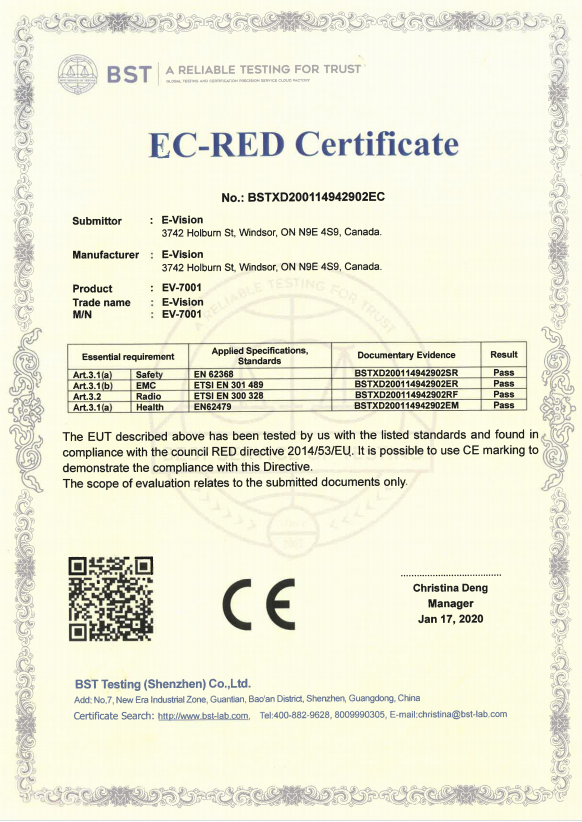

CE certified
Overview
Large entities require clear insight into vehicles and assets during transportation trips; traditional vehicle trackers only provide vehicle information.
EV-7001 vehicle tracker with embedded RFID reader provides live GPS location of the vehicle and the loaded assets at the same time.
E-Vision EV-7001 is an easy plug and play GPS vehicle tracker with GNSS, 3G and NRF connectivity and an embedded RFID reader, perfectly suitable for waste management solutions and personal transportation solutions.
EV-7001 is equipped with a leading alert system and flexible programming rules to ease deployment according to customer needs. This advanced engine monitors all conditions and supports user defined exception-based rules to help meet the needs of the application.
EV-7001 continuously monitors the vehicle status and responds instantaneously to predefined thresholds related to time, date, motion, location, geo-zone, speed and other event combinations.
The device is designed for heavy duty and difficult environment conditions, and is fully compatible with over the air configuration as well as firmware updates. RFID readings are reported immediately to the central server once detected.
Features
- Rugged water / dust proof
- RFID reader
- 2G/3G
- LTE version (optional)
- Online firmware updates
- Intelligent power management
- Geo-fence management
- GPS and GPRS indicator
- Wireless interface to support OBDII
- Remote vehicle turn-off
- Online / offline location
- SD for history storage
Applications
Waste collection
EV-7001, supported with a built-in RFID reader, is perfectly suitable for waste collection services: by attaching RFID tags to the trash bin and equipping the waste collector with the device, the loaded bins are indicated along the way.
Safe students transport
Employing GPS and RFID technologies is a perfect mix to indicate the on-board students based on RFID bracelet tags, with predefined configuration to generate alerts if there is a student on board while the bus engine is off.
Technical specifications
General
- Communication modes
- HSPA+, HSDPA, HSUPA, WCDMA, EDGE and GPRS networks and TCP/UDP/SMS
- Location technology
- 16 GPS active channels and 14 GLONASS active channels
- Operating voltage
- 12 & 24-volt vehicle systems
GPS
- Location technology
- 16 GPS active channels and 14 GLONASS active channels, SBAS (WAAS, EGNOS and MSAS)
- Accuracy
- SBAS <2.5m CEP-50
- Tracking sensitivity
- -161dBm
UHF RFID
- Operating frequency
- 860 ~ 960MHz
- Supported standards
- ISO18000-6C (EPC C1G2), ISO18000-6B
- Output power
- 0 ~ 30 dBm
- Effective distance
- 9 m
- Sensitivity
- -85 dBm
Cellular
- Modem
- Quectel UC20
- Data support
- SMS, TCP, UDP
- GSM/GPRS
- 850/900/1800/1900MHz
- UMTS WCDMA FDD
- 900/2100MHz
- HSPA data rate
- 14.4Mbps (DL) 5.76Mbps (UL)
- WCDMA data rate
- 384kbps (DL) 384kbps (UL)
- SIM card
- 1.8/3 V

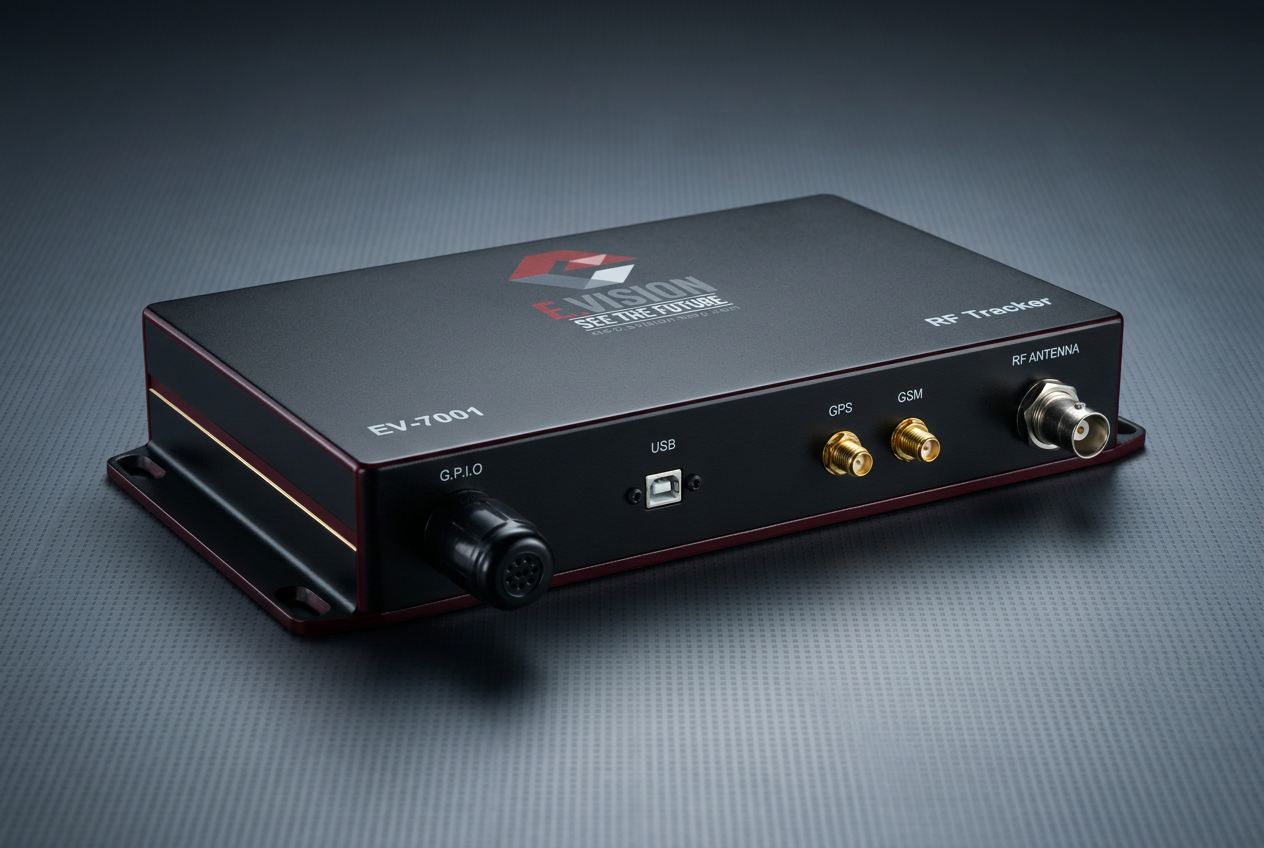

Interfaces
- Digital inputs
- 5 wires
- Digital outputs
- 5 wires
- Analog inputs
- 4 wires
- Indicators
- 4 external 3V outputs
- SD card
- Micro SD-Card saves location history
- USB
- Water proof USB
- GPS antenna
- SMA
- GSM antenna
- SMA
- OBDII wireless link
- SMA
- SIM card
- Internal SIM house
- RFID antenna
- TNC
- Power switch
- Internal On/Off switch
OBDII wireless link
- Operating frequency
- 2.4 - 2.5 GHz ISM band
- Modulation
- GFSK
- Maximum output power
- 0 dBm
- Channel bandwidth
- 2 MHz
- Sensitivity
- -85 dBm
Electrical
- Operating voltage
- 8-30V DC operational for 12V & 24V
- Power consumption
- 18mA 12V (sleep), 90mA 12V (power save), 130mA 12V (active tracking)
- Backup battery
- LI-PO 1300mAh
Environmental
- Operating temperature
- -10 ~ +50°C
- Humidity
- 95%RH @ 50°C non-condensing
- EMC/EMI
- SAE J11113; FCC-Part 15B
- RoHS
- Compliant
- Ingress protection
- IP68
Physical
- Dimensions
- 52(L) x 57(W) x 28(H) mm
- Weight
- 80g (without battery)
